| Item no. |
4KOE23043 |
| Frame |
Alu 6061 |
| Frame size |
21″ |
| Wheel size |
29'' |
| Motor |
central motor with pressure sensor BAFANG M510 ( 250W/max.600W, 95 Nm) |

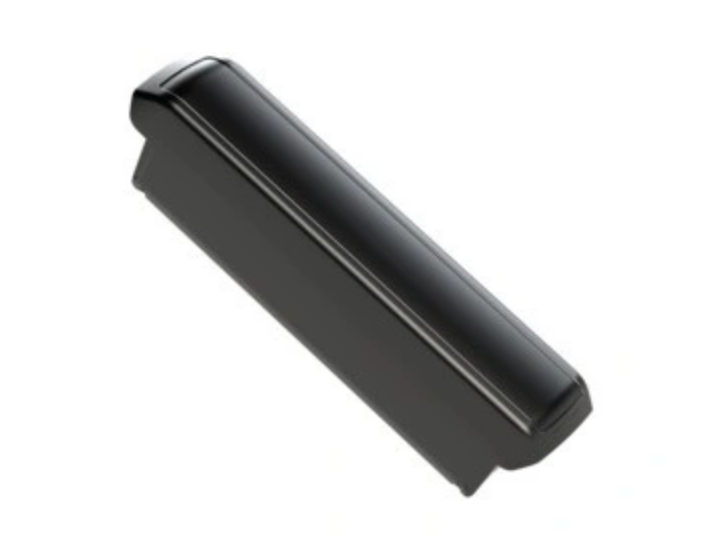

| Battery |
BAFANG Li-ion 43V/14 Ah (600 Wh) SAMSUNG Cells |
| Max. range |
140 km |
| Speed |
25 km/h |
| Control |
color LCD display, 5 degrees of assistance |
| Max. load capacity |
120 kg |
| Weight |
20,5 kg |
| Fork |
ZOOM VAXA RLO Air, travel 120 mm, lockable |
| Handle |
BAFANG (38 Teeth), Crankarm 170 mm |
| Shift |
SHIMANO Deore SL-M5100, 11 Speed |
| Gear change |
SHIMANO Deore RD-M5100 |
| Cartridge |
SHIMANO Deore CS-HG5100 (11 - 42 Teeth) |
| Rear shock absorber |
ZOOM EXA 588RL, 150 /33 mm |
| Chain |
KMC X-11-E |
| Brake |
Tektro Gemini HD-M530, Hydraul. Disc Brake |
| Front hub |
NOVATEC D761DSE |
| Rear hub |
NOVATEC D762TSE |
| Rims |
RODI BLACKROCK, 36H, 622x21 |
| Spokes |
SAPIM, reinforced (13G, diameter 2,3 mm), stainless black |
| Tires |
MAXXIS Forekaster 29 x 2,35 |
| Pedals |
Alu, expanded, ball bearings |
| Grips |
MTF SportGrip |
| Handlebars |
MTF Sport (720 x 31,8 mm) |
| Stem |
MTF Sport (31,8y length 70 mm) |
| Head composition |
NECO, semi-integrated 1 1/8'', black |
| Seat post |
MTF (30,4 / 400 mm) |
| Seat |
MTF NoPressure Sport |
| Charger |
MTF 43V / 2A |
